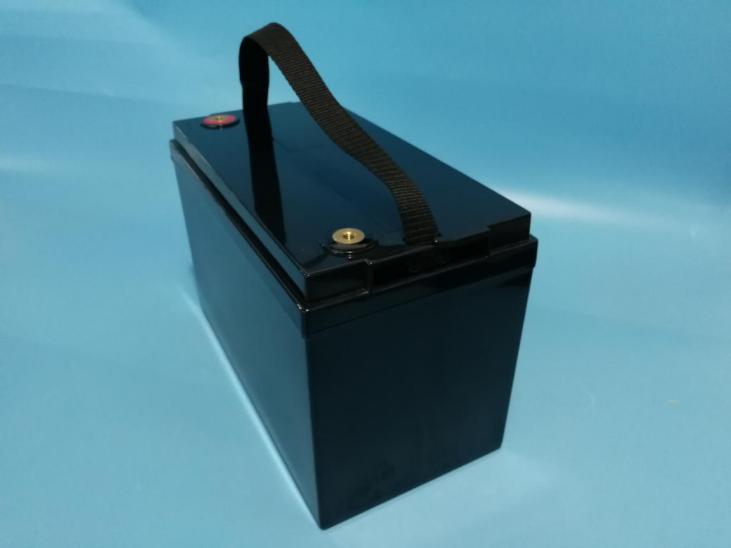

High Voltage Lithium Polymer Batteries , Commercial Lithium Ion Battery
Model: 48V/40AH
Specification L x W x H: 330mm*173mm*216mm
Parameters: working temperature -20°C ~ 60°C, ternary lithium 3S, continuous working current 80A, 50A charging, instantaneous maximum current 150A (2S), M8 pure copper stud interface, charging upper limit 12.6V, discharge cut-off 9V, lead acid outer casing ,weight 12.5KG. (There are four colors and 50 different sizes for users to choose)
Applications
electrical motorcycle,ebike, e-scooter, e-wheelchair, e-golf cart, medical equipment, power tool, electric unicycle etc.
CELLS:
Quality Lithium-ion cells with high power and energy density;
Passed abuse tests of over-charge/discharge test, high-low temperature test, impact test and puncture test;
With good safety performance, without problems of short-circuit, leakage, inflammation and explosion;
No memory effect, low self-discharge rate;
Environment-friendly;
Long cycle life to over 800 times or 2-3 years
| | | Number | HY00012 |
| Version | A0 |
| HYLF/48/40-001 Battery pack specification | Date | 2019-5-8 |
| 1．Basic characteristics | Product picture
|
| Product name | Lithium battery pack |
| product code | HYLF/48/40-001 |
| L x W x H | 330mm*173mm*216mm |
| Rated voltage | 48V |
| Rated Capacity | 60AH |
| Serialization | 14SSoft polymer |
| Internal resistance | ≤100mΩ |
| Discharge cutoff voltage | 39.2V | Shell color Shell color □ Matt black ☑ Bright gray □ Fruit green + bright gray (two colors) □ Stainless steel Charging and discharging interface □ Wall terminal □ Anderson □ Air plug □ Positive and negative lines ☑ Terminal post Batteries:3.7v/40Ah |
| Charging protection voltage | 58.8V |
| Max.charging voltage | 59.5V |
| Max. charging current | 8A 0.2C |
| Max. sustained discharge current | 50A |
| Peak current | 100±3A 2S |
| Rated discharge current | 20A |
| Charging method | CC/CV | Cell discharge curve
|
| weight | 11.5Kg |
| Operating temperature | Charging | 0～45℃ |
| Discharge | -20～45℃ |
| 60-80%SOC , 2 Storage temperature 60-80% SOC storage, need to recharge every 2 months | -10～35℃ |
| C1 Cycle life | 1500 Times |
| price | RMB:¥ 00.00 | Cycle graph |
| Delivery period | 25 Working day |  |
